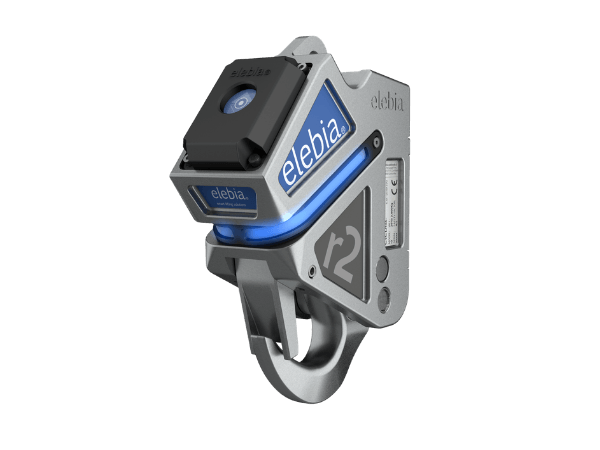

R2 Quick Release Hook
Release loads remotely. The R2 is a wireless automatic quick release hook built for industrial lifting — plug & play, fail-safe, and ready to integrate with your crane.
R2 Automatic Release Hook: How It Works
Designed for demanding industrial lifting operations, the R2 automatic release hook gives operators full visibility and control at every step — from a safe distance, with clear status feedback and a fail-safe design built for reliability.
Real-Time Monitoring: LED Status Indicators
The R2 carries high-brightness, multi-colour LEDs visible from a distance even in direct sunlight.
LEDs automatically turn off during load suspension when Eco Mode is enabled.
▸ LED status — full detail
Green — Unlocked / Release

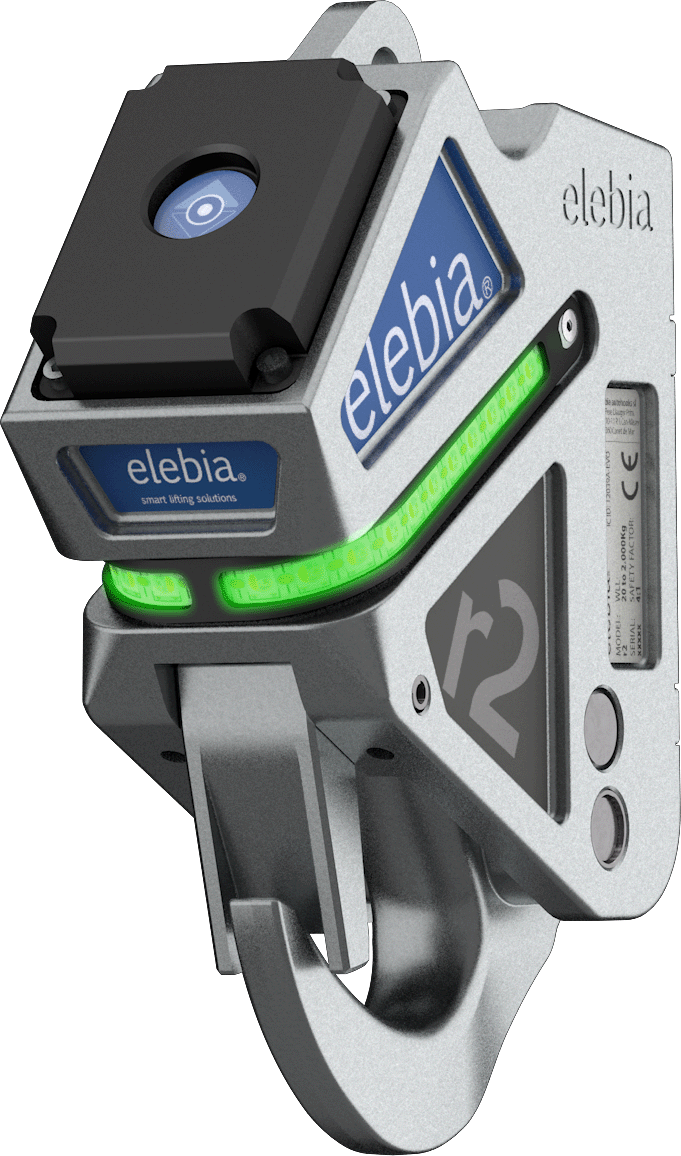

Steady Green
Lock pin fully retracted — hook unlocked and ready to release.
Double Green Scanner
Same status, appears after 10s to save battery.
Single Green Circular Sweep
Autolock is enabled and monitoring the crane’s vertical displacement. The R2 will lock itself automatically once the configured height is reached.
Blue — Locked / Lift
Steady Blue
Pin fully extended — hook locked and secured. The R2 is ready to lift the load.

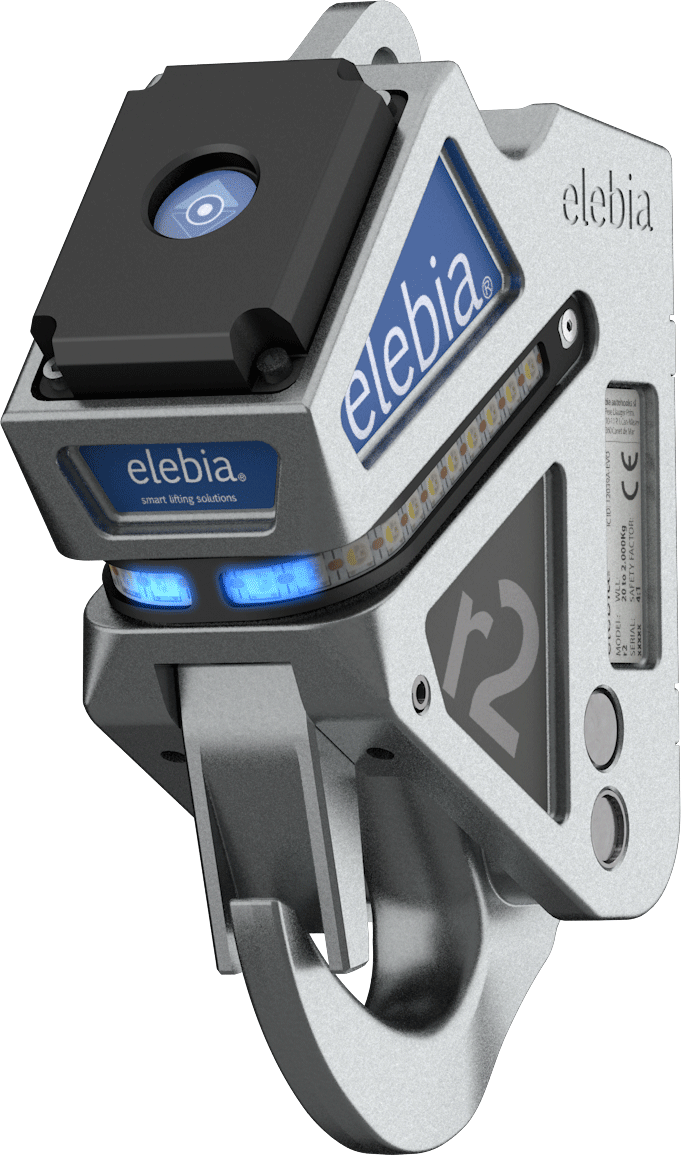

Double Blue Scanner
Same status, appears after 10s to save battery.
Single Blue Circular Sweep
Eco Mode is disabled and the R2 detects a suspended load.
Red — Transition

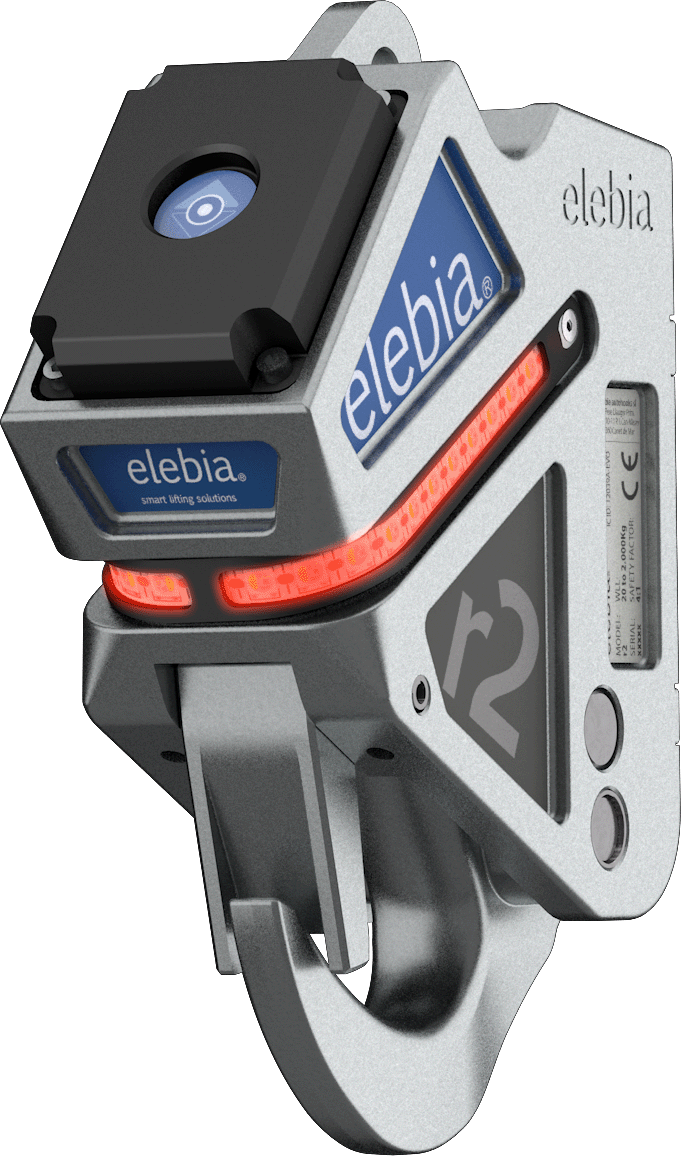

Steady Red
The locking mechanism is transitioning. Do not attempt to lift. This appears during every normal lock/unlock transition and is usually instantaneous (less than one second).
Double Red Scanner
If Steady Red persists beyond 10s, the locking pin may be stuck due to tension. Do not lift — lower the unit and send the release command again.
White — Low Battery
Steady White
Below 20%. The R2 remains operable; replace the battery soon.

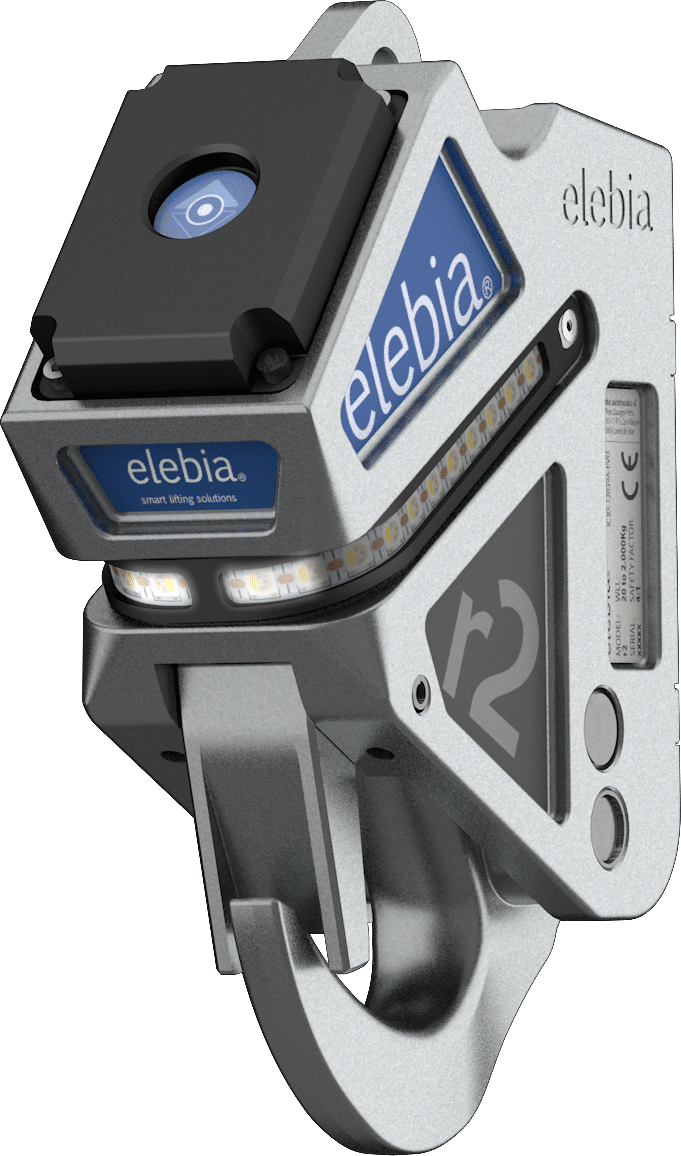

Double White Scanner
Same status, appears after 10s to save battery.
White + Beep
Below 10%. Critical battery level — the R2 will not accept lock or unlock commands. Replace the battery immediately.
Off
Off
The load is suspended (in Eco Mode), or the battery is depleted. No commands are accepted, for safety and battery conservation.

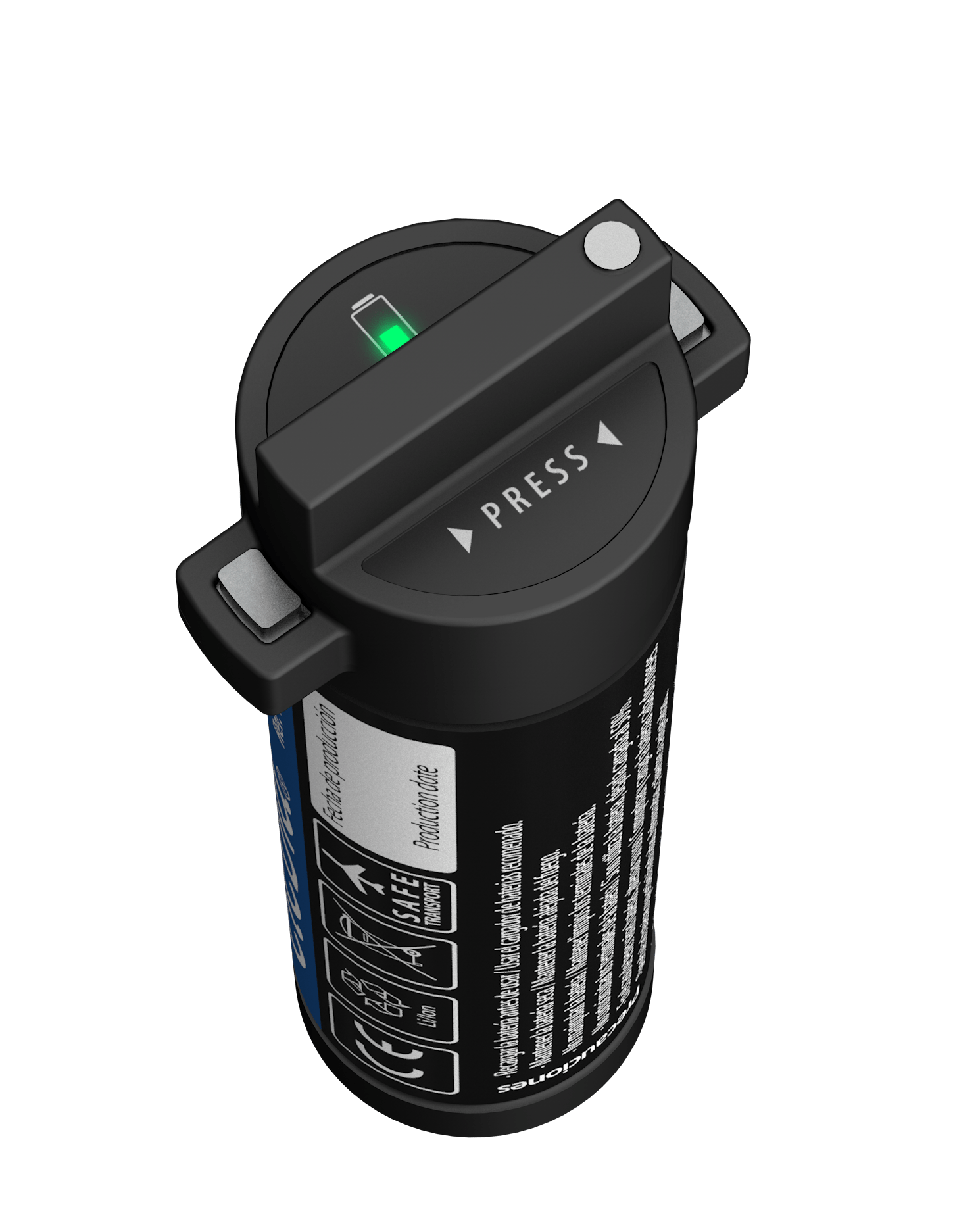

Battery – Compact, Powerful and Rechargeable
The R2 automatic release hook utilizes a high-performance Li-ion battery for extended operation and reduced downtime.

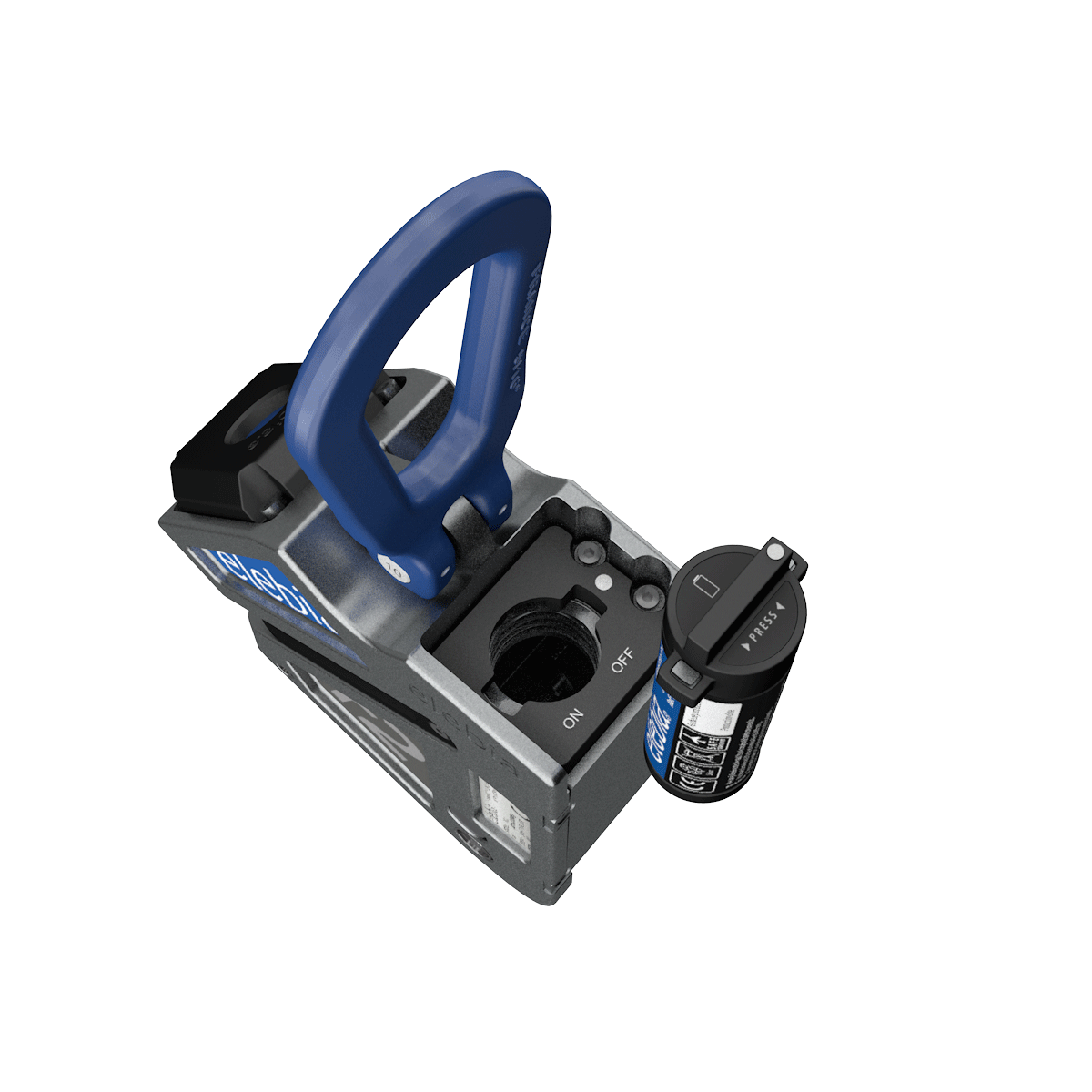

No tools. No cables. Just twist and go.
- Quick swap: Twist-lock plug — insert, twist 30° to switch on. Reverse to switch off. No tools needed.
- Easy monitoring: Check charge level with the push button and LED, even when detached from the remote release hook.
- Carry a spare: Compact and rugged — keep one charging while the other is in use. Operations never stop.
- Energy efficient: Intelligent sleep modes extend battery life during idle periods.
- Built-in protection: BMS protects against overcharge, over-discharge, and short circuits.
- Long runtime: Several days of operation depending on cycle duty and configured parameters.
- Wide temperature range: Functional from −20°C to +60°C.
Built-in LED charge indicator — visible even when detached from the hook or charger:
Orange 25–75%
Red < 25%
The R2 automatic release hook comes with the R2 Power Station — a dedicated USB-C charger that charges up to two batteries simultaneously. Full specs at elebia.com/batteries-and-chargers.
R2 Quick Release Hook Specifications
| Working Load Limit (WLL) | 20 – 2,000 kg |
| Weight | 4 kg |
| Safety factor | 4:1 per EN1677 |
Hardware Configuration Options
The R2 can be configured at time of order with different hardware options. Some changes might require intervention by an Elebia service representative.
Latch Type
The latch controls how the hook engages the load. Two options are available:

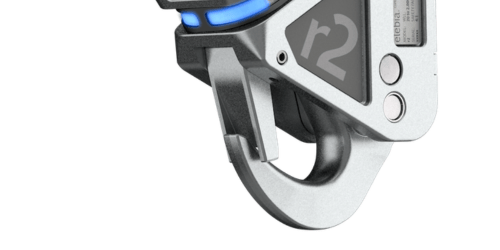

Spring Latch
The latch closes automatically when the sling enters the hook. No manual action required — the hook is ready to lift as soon as the sling is seated. Compatible with single sling configurations only.

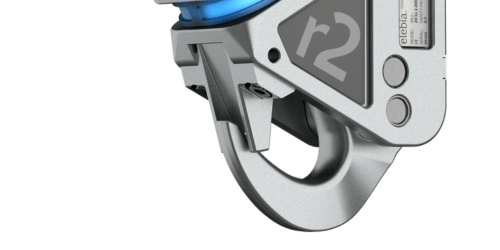

Rigid Latch
The latch remains fixed and does not move independently. This is the only configuration that allows more than one sling to be inserted into the hook, provided that: the total load does not exceed the WLL; the load applied on the latch does not exceed 50% of the WLL; and working angles of the slings are respected according to standard rigging practice.
Spring Options
The R2 is available in two spring options, set at time of order.

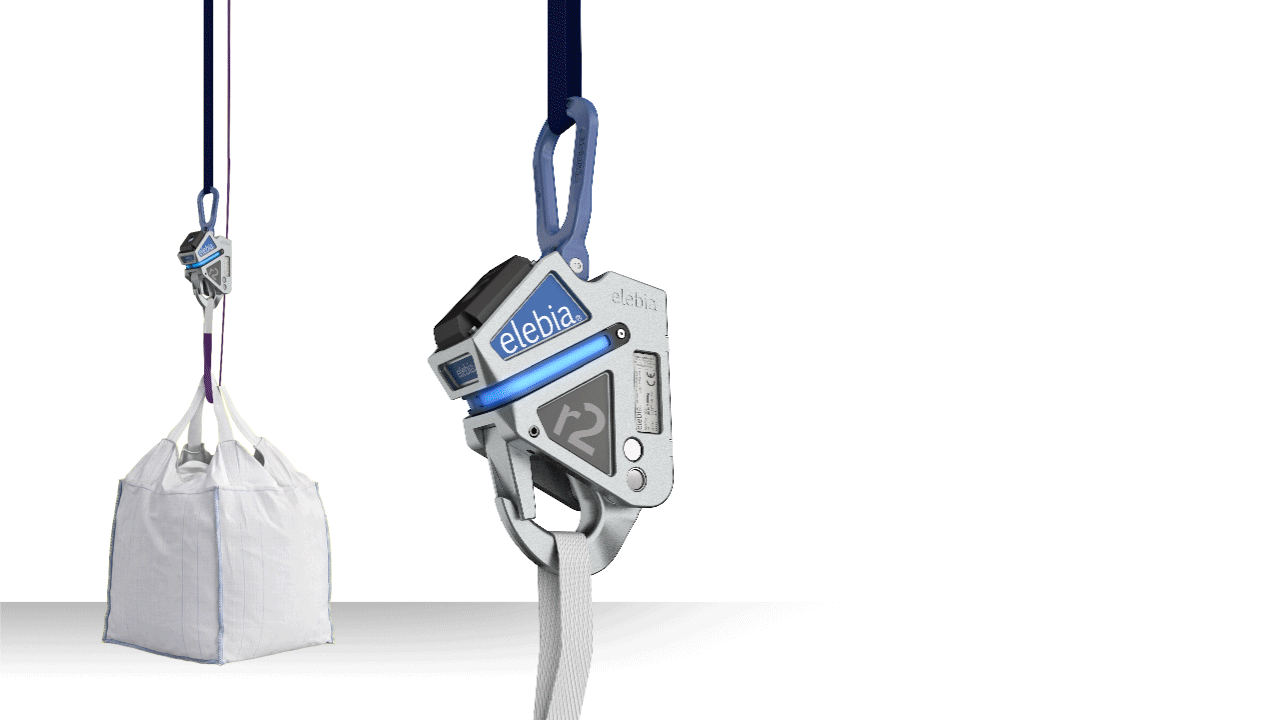

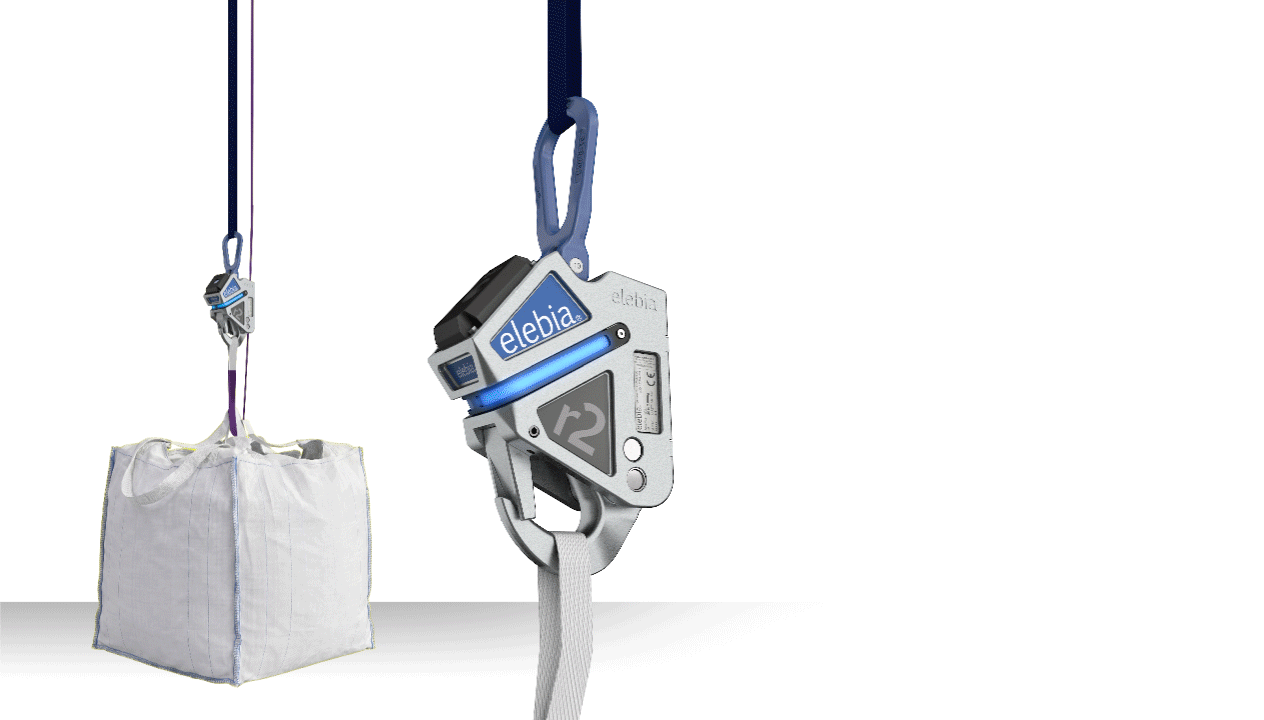

Normally Closed
When the load is back on the ground, send the release command. The hook unlocks and the sling detaches as the crane rises.
The hook then closes automatically — no manual intervention needed. Ready for the next lift.
Removes the need for manual hook closure, reducing handling steps and improving overall efficiency and safety.
The sling does not release until the crane moves upward. Customers who prefer to see the sling fall free may prefer the Normally Open setup.
Some configuration changes might require spring replacement by an Elebia service representative.
Smart Features & Configurable Software Options
The R2 remote release hook includes a set of intelligent operating modes that can be adjusted to match your exact operation.
Built-in Safety
Elebia, the inventor and pioneer of automatic hooks, prioritizes safety. The R2 incorporates the following safety features:
Safety factor 4:1 per EN1677 — all load-bearing components meet or exceed this standard
Remote Control Options – Total Command, Zero Contact
The R2 automatic release hook is compatible with Elebia’s range of advanced remote controls, giving operators full command at a safe distance.
Why Choose the R2?
- –Eliminate manual handling and working at height and hazardous areas
- –Reduce risk of accidents, injuries, and human error
- –Fail-safe design prevents release of suspended loads
- –LED status indicator provides clear visual feedback on hook status and safety conditions
- –Minimize downtime between lifts with faster rigging transitions
- –Remote-controlled release keeps workflows smooth and uninterrupted
- –Automatic hook reset — ready for the next lift instantly
- –Removable batteries — no need to stop operations; just swap and keep working
- –Compatible with eLINK for remote monitoring, diagnostics, and updates
- –Enable lift automation and seamless integration into smart lifting systems
Applications and Use Cases
From port handling to precast construction, the R2 radio controlled remote release hook adapts to operations where remote release means the difference between efficiency and risk.
Ports & breakbulk
Paper pulp, big bags, super sacks, aluminium ingots.
Construction
Remote release on columns, panels, beams.
Manufacturing
Faster rigging changeovers in assembly lines.
Offshore & Shipyards
Hands-free release in hard-to-access zones.
Steel & Foundries
Safe operation in high-temperature environments.
Steel Erectors
Remote release of steel joists, trusses and structural members during erection.
Wire Rope Rigging
Compatible with standard wire rope slings for versatile rigging configurations across multiple industries.
Maintenance & Shutdowns
Remote release in tight, elevated areas.
Accessories
The R2 remote release hook is designed for demanding field operations. To complement it, Elebia offers a purpose-built carrying and storage case.

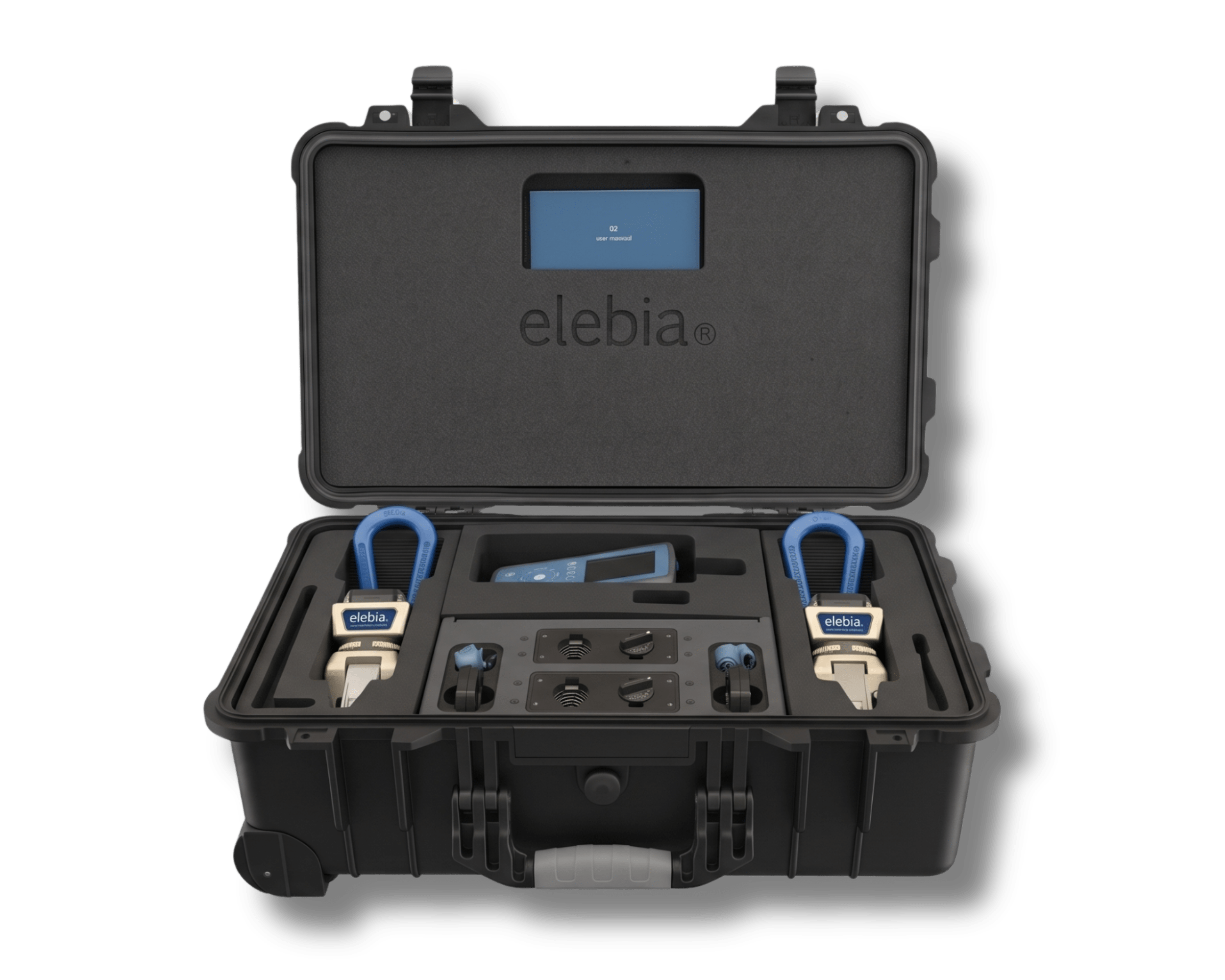

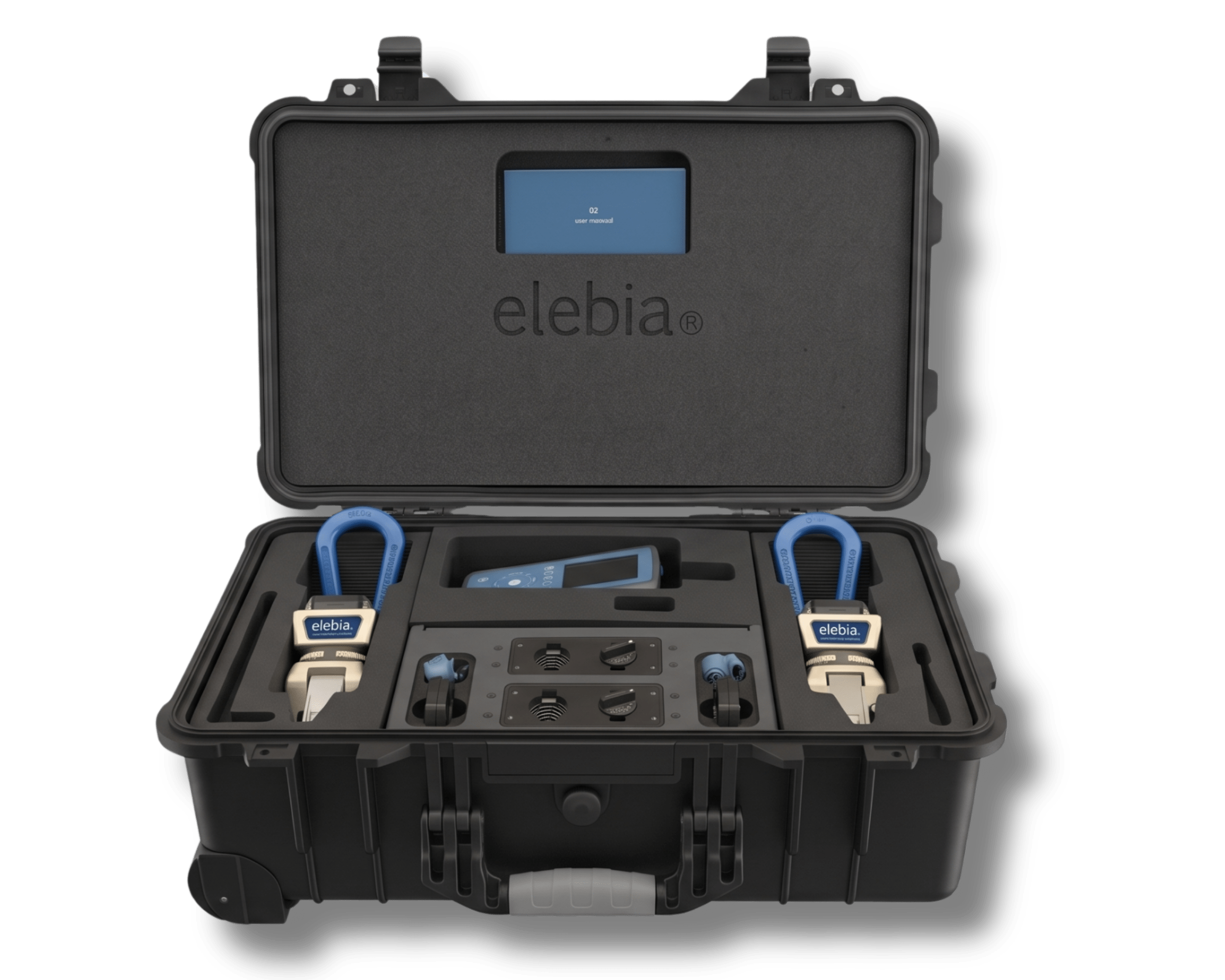

Dual Transport and Charging Case
A purpose-built case designed for carrying and handling the R2 in the field, with wheels and an extendable handle for easy transport.
- 4× Battery charging slots: Charge up to four R2 batteries directly inside the case.
- 2× R2 hook slots: Custom foam inserts hold two R2 hooks securely in place during transport and storage. Protected against impact and vibration.

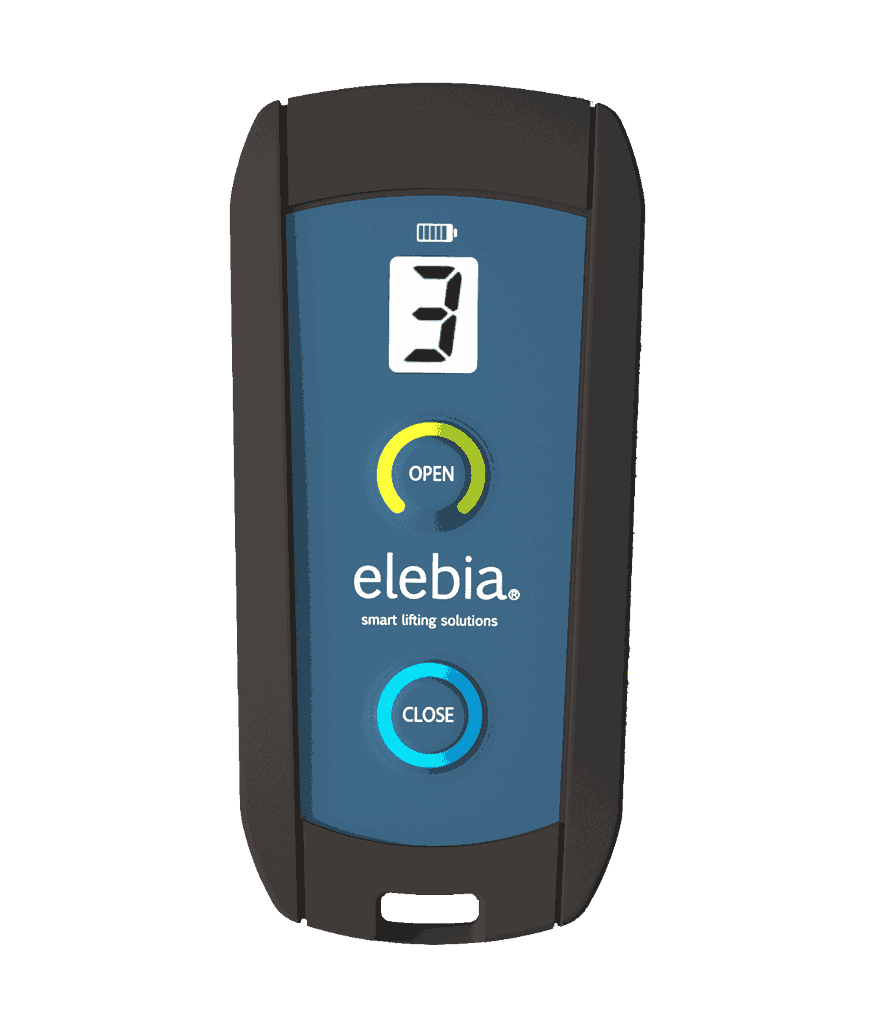

- 2× eMINI slots: Dedicated space for two eMINI compact handheld remotes, always within reach and protected.

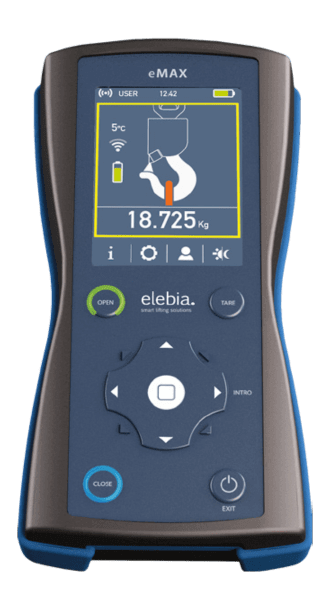

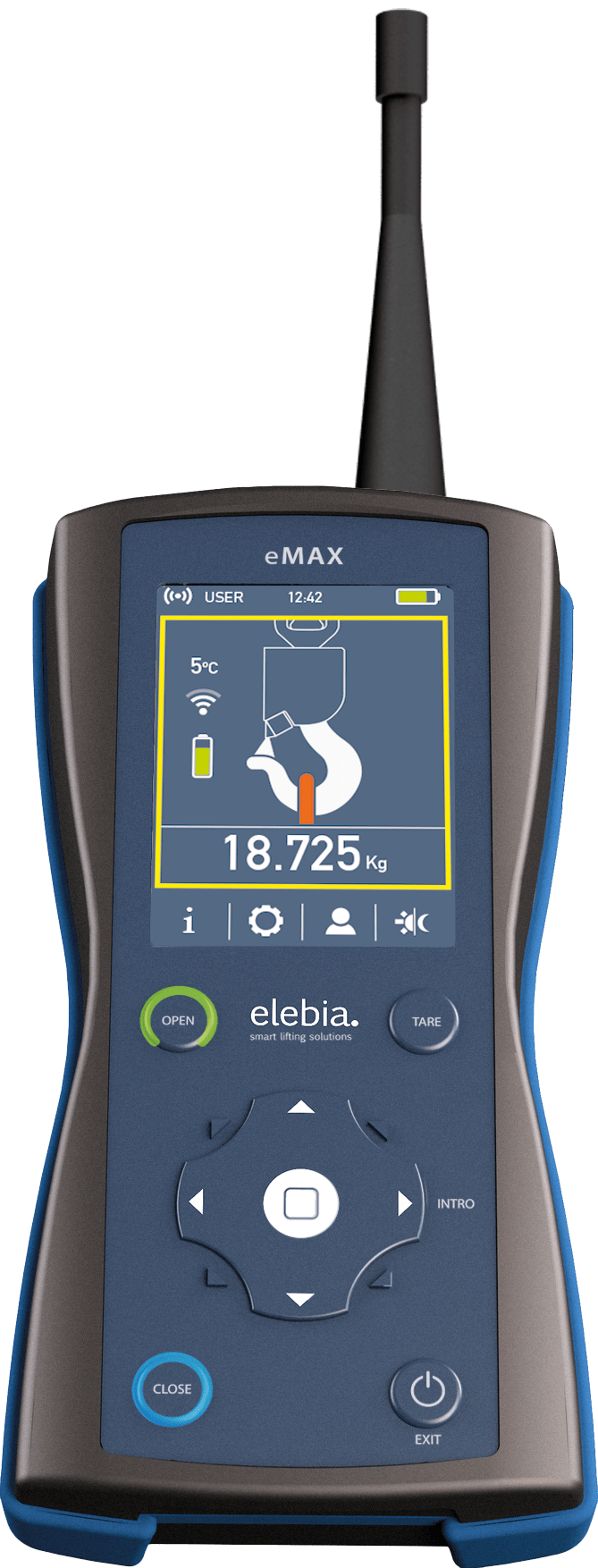

- eMAX + antenna slot: Houses the eMAX remote together with its long and short antenna. Everything in one place, ready to deploy.
- Powerbank slot (optional): Enables autonomous on-site charging without mains power — ideal for remote job sites or operations without access to a fixed power supply.
- Transport-ready: Wheels and extendable handle. Suitable for road, air, and sea freight.
| External dimensions | 559 × 351 × 229 mm |
| Total weight (full) | 18 kg |
| R2 hooks | 2× |
| Batteries (with charging) | 4× |
| Remote controls | 2× eMINI + 1× eMAX |
| Available | Standalone or with Powerbank |
* External charger not included — must be purchased separately (male USB-C output required). 65W recommended when using the Powerbank accessory.
Hover over the image to discover each compartment.
4× Battery charging slots
Charge up to four R2 batteries directly inside the case. No need to remove them — just plug in the charger and go.
2× R2 hook slots
Custom foam inserts hold two R2 hooks securely in place during transport and storage. Protected against impact and vibration.
2× R2 hook slots
Custom foam inserts hold two R2 hooks securely in place during transport and storage. Protected against impact and vibration.
2× eMINI slots
Dedicated space for two eMINI compact handheld remotes, always within reach and protected.
2× eMINI slots
Dedicated space for two eMINI compact handheld remotes, always within reach and protected.
eMAX + antenna slot
Houses the eMAX advanced remote together with its long and short antenna. Everything in one place, ready to deploy.
Powerbank slot (optional)
Available as an optional add-on. Enables autonomous on-site charging without mains power — ideal for remote job sites or operations without access to a fixed power supply.
User Manual - R2

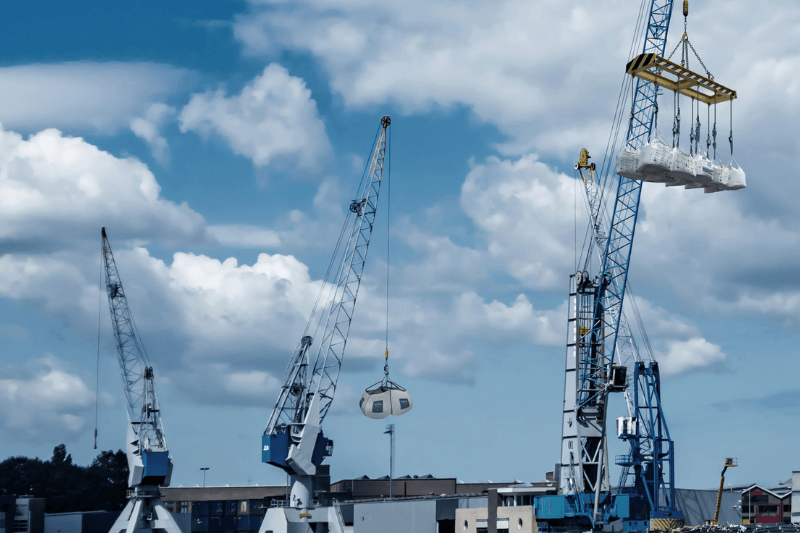

Advanced Rigging Flexibility with the R2 Hook
The R2 automatic quick release hook by Elebia supports a wide range of rigging configurations to adapt to your exact lifting needs. Whether you’re lifting pallets, frames, or irregular loads, you can build the setup that suits your operation best:
- Vertical hitch
- Basket hitch
- Choker hitch
- Lifting panels
- Frames and custom rigs
- Spreader beams and bars
Regulatory Standards for the R2 Quick Release Hook
Elebia certifies with the following regulatory standards:
| EN 10204 3.1.B | UNE-EN 61000-6-2:2006 | D89/654/EEC |
| UNE-EN 1050 | UNE-EN ISO12100:2012 | D89/655/EEC |
| UNE-EN 1677-1:2001+A1:2009 | UN 38.3 | D89/656/EEC |
| UNE-EN 1677-2:2001+A1:2008 | D89/391/EEC | D92/58/EEC 9a |
| UNE-EN 602041:2007 | UNE-EN 61000-6-4:2007 |
Directive on Machine Safety (D2006/42/EC).
EMC Directive (2014/30/EU).
Low Voltage Directive (2014/35/EU).
Radio Equipment Directive (2014/53/EU).
Assurance of Production Quality in accordance with ISO9001.
ARIB Construction Design Certification Number 203-JN0689.
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System.
Each mechanism is delivered with the CE stamp and a declaration of CE conformity.
elebia is a member of F.E.M. (European Federation of Materials Handling).
The R2 hook has been designed integrating the essential safety requirements of international lifting standards; however, due to its nature as an automatic device, certain provisions (especially those related to geometry) are met in a limited manner.
Quick Links for the R2 Hook
Hook Configurator
Personalize and configure your crane hook and any of its accessories.
Training & Certification
Complete the R2 online training and obtain your user certificate.
Quick FAQs about the R2 Quick Release Hook
What makes the R2 different from a traditional airhook?
The R2 automatic release hook is fully wireless — no pneumatic hoses, no cables, and no permanent installation required. It features automatic fail-safe mechanisms, an altimeter-based Autolock, and a Safe Release Sensor that traditional airhooks do not offer. Designed for productivity, it requires minimal maintenance and integrates into any crane without modifications.
Can the R2 be used in outdoor and harsh environments?
Yes. The R2 remote release hook is designed to operate in demanding conditions, including exposure to water and dust.
How long does the battery last?
Battery life is above multiple shifts depending on the use and configured parameters. The hot-swap system means operations never stop — operators carry a spare and swap in seconds.
What maintenance does the R2 require?
Pre-shift visual inspection by a certified user and periodic inspection by Elebia-designated personnel. Full inspection checklist available in the user manual.
Is the R2 compatible with our existing crane?
Yes. The R2 works with all Elebia remote controls and can integrate directly into the crane’s master control via eINST, or fully via PLC with eLINK.
What is the delivery time for the R2?
Contact Elebia’s sales team for up-to-date delivery information.
The R2 is a compact, lightweight automatic release hook — manually engaged, remotely released, built for restricted or hard-to-reach applications.
Looking for a fully automatic hook that engages and releases on its own? See the evo2 automatic crane hook →
