NEO50/NEO60 Hook
The NEO50 & NEO60 lifting hooks have been designed as a solution for lifting and transporting any load, as well as for oversized lifting points of up to 130mm Ø. With their 50,000 kgs. (110,231 lbs.)/60,000 kgs. (132,277 lbs.) lifting capacity and advanced safety and productivity features, the NEO50/NEO60 lifting hooks are the smartest lifting solution yet.
NEO50/NEO60 Hooks – Big Just Got Bigger!
The NEO50 hook has a Working Load Limit (WLL) of 50,000kgs./110,023lbs.
Safety factor of 4:1.
__________________________________________________________________________________
The NEO60 hook has a Working Load Limit (WLL) of 60,000kgs./132,277lbs.
Safety factor of 3:1.
The life span of the NEO60 hook is limited to 20,000 lifts. (UNE-EN 13155:2004+A2)
The NEO60 hook carries an electromechanical counter for cycle recording.
Check out all of our NEO Lifting Crane Hooks
How does it Work?
The NEO hook approaches the lifting point and once the trigger
makes contact with the lifting point the closing operation begins.
Once NEO’s sensor recognizes the hook is in the closed position, it latches automatically, with
the LED’s status changing from green (open), to red, (intermediate state), and finally to blue (closed).
It is at that moment that the cargo is ready to be lifted and transported.
In Detail
The Maximum Releasable Weight is 13 to 17 kgs./28 to 37 lbs.*
* For higher values, please contact the sales department.
LED Status Indicator
Besides their fail-safe design, as with the rest of our lifting products, the NEO50 & NEO60 also carry
a High-Brightness LED status indicator, an additional safety measure which shows the lifting hook’s
status at all times with a bright 4 colour colour-code scheme visible from the operator’s position.
Green: Lifting Hook is Open / Release Load
Red: Intermediate: Do Not Lift!
Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
White: Low Battery
Smart Battery
You will never have to worry about a discharged battery with the
rechargeable Li-Ion technology of NEO’s high-capacity battery.
When the hook is in Smart Nap Mode, its electronics and LED status indicator
will not activate themselves until the hook has made contact with the load’s
lifting point, improving the batteries’ efficiency and energy consumption.
The slot cover is also protected with a safety lock which
protects the battery from falling in case of impact.
By means of the eMAX remote control, the electronics of the hook
can be configured so that when the battery charge is below
a preset threshold by the user, the hook can only be opened.
With this threshold, even is the battery is almost discharged,
you will always be able to open the hook and release the load.
Always On/Smart Nap

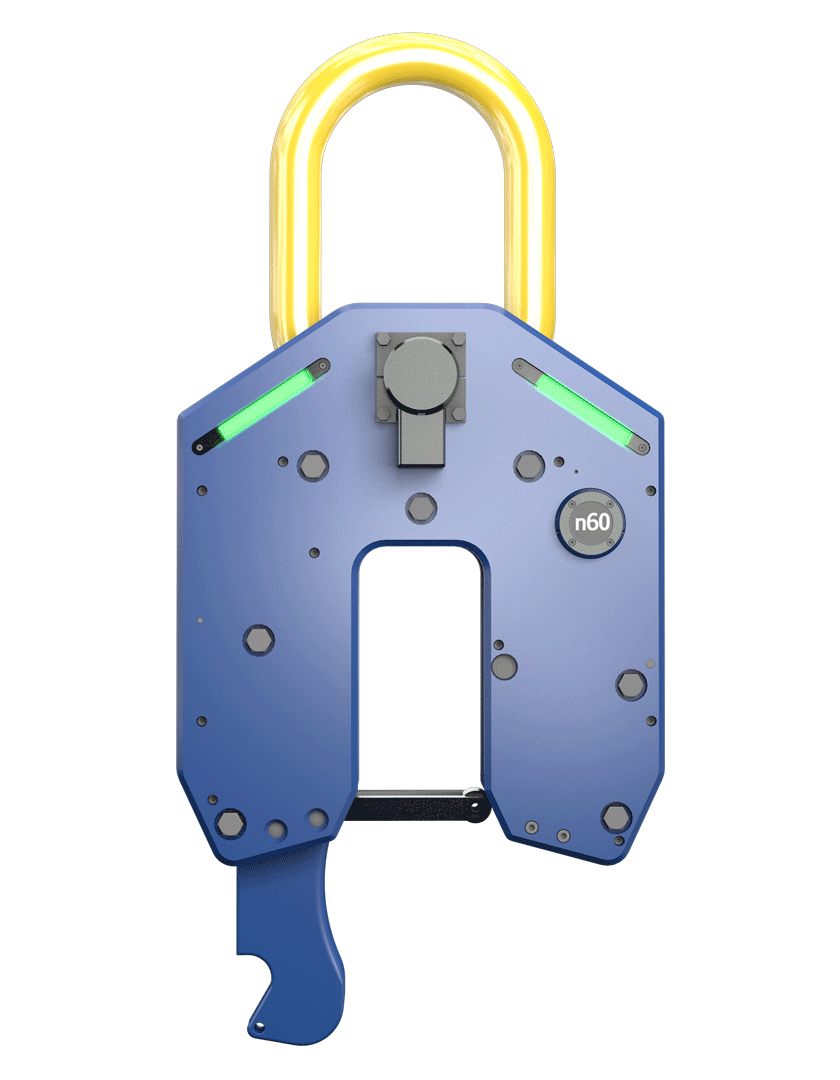

Always On
With the “Always On” mode, the colour code scheme of the
LED status indicator will always be visible. Blue – for closed –
and green – for open – are continuous for 10 seconds and
then take an intermittent pattern in order to save battery.
Activate this mode by pushing the top button beside the battery.
Battery Duration:
5,000 cycles / 250 hours in standby mode.

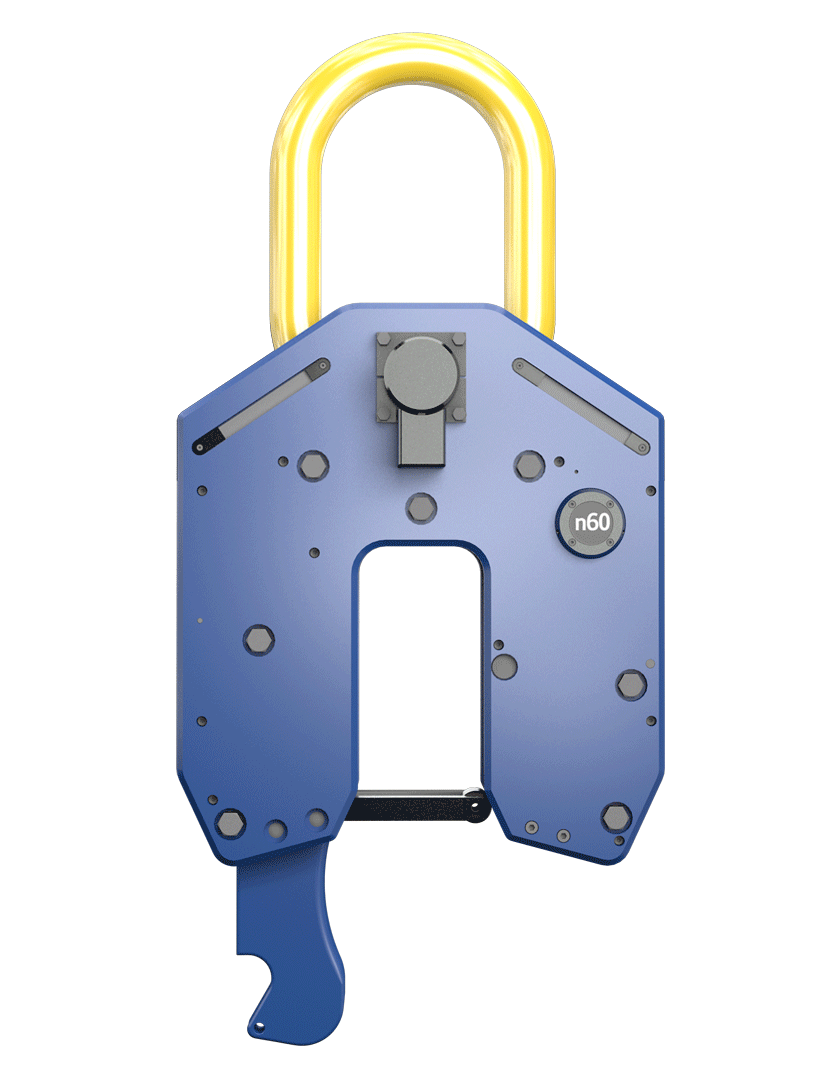

Smart Nap
The “Smart Nap” mode reduces battery consumption by
activating the LED’s colour-code scheme when the NEO’s
hook commences its closing motion. Up until that moment,
the lifting hook is in sleeper mode and its electronics and
battery are not active.
Battery Duration:
5,000 cycles / up to 2 months in standby mode.
Load Cell *
Both the NEO50 & NEO60 are equipped with a load cell.
This load cell is precise, reliable, rugged, compact and fully integrated into the
hook, representing no increase in weight or dimensions of the unit.
With the load cell, as of 1% of the working load limit of the hook, the intermittence
of the LED Status Indicator is of a higher frequency. With this feature, it is visually
recognizable that the hook is closed and with a suspended load.
* This feature is optional
Specifications
| Load Cell Type | Flexion Ring |
| Material | Stainless Steel |
| Protection | IP66 |
| Nominal Capacity (Ln) | 50,000 |
| Precision Class | 0.5% |
| Minimum Dead Load | 0% Ln |
| Service Load | 150% Ln |
| Ultimate Load | 400% Ln |
| Total Error | < ±0.5% Sn |
| Repeatability Error | < ±0.02% Sn |
| Creep Error (30 min.) | < ±0.01% Sn |
| Temperature Compensation | -20 ºC to 60 ºC |
| Temperature Limits | -20 ºC to 90 ºC |
| Nominal Sensivity (Sn) | 1 ±0.25% mV/V |
| Input Impedance | 400 ±30 |
| Output Impedance | 352 ±5 |
| No Load Input | < ±2% Sn |
| Insulation Resistance | > 5,000 M |
| Temperature Effect: | |
| on zero | < ±0.02% Sn / 5 ºC |
| on sensitivity | < ±0.02% Sn / 5 ºC |
Laser Pointer
The NEO50 & NEO60 carry a laser pointer as an optional feature.
In lifting operations, and from a certain distance, the sense of depth can be misjudged.
The laser pointer acts as a guide in order to perfectly place and set the
hook in the correct position when approaching the lifting point.
It can be manually activated by pressing the button that is beside the battery slot.
* This feature is optional
Fail-safe Design
Thanks to its fail-safe design, once the load is correcly placed on the hook,
it is not possible to release or drop the cargo that is being lifted.

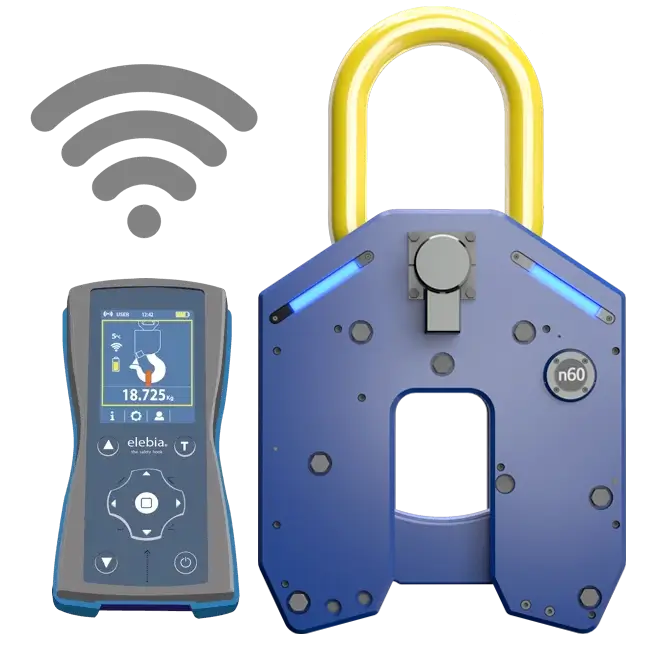

Remote Controlled
Remotely engage any load with any of our remote controls.
All of them allow a simple and reliable control in a fail-safe way.
Send all the necessary orders and receive all the info from
the NEO50 & NEO60 lifting hooks straight to your remote control.

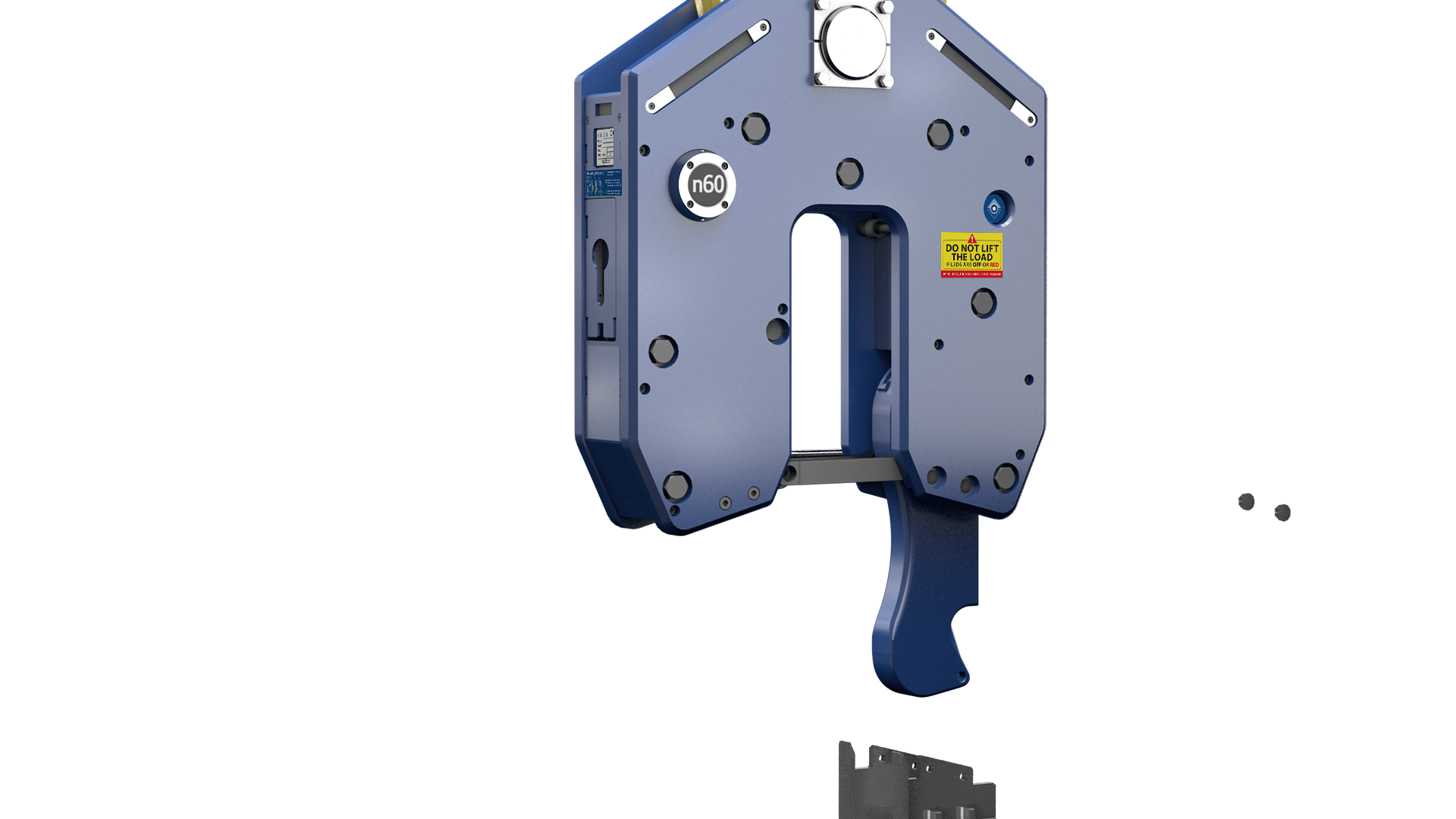

Metal Tip *
A metal tip can be inserted to facilitate NEO’s orientation and approach to the lifting point.
Fabricated from high-strength steel, it is reinforced to protect the hook against impacts.
* This feature is optional
See it in Action!
Lifting Procedure
Lifting and Handling Bell Furnaces
Manual Override
If there’s ever the need to manually override NEO’s
electronics, the process is very simple.
At ground level, simply open the cover and wait until LEDs turn green.
If the manual override process has to be carried out at height
a simple 3 step procedure is all it takes:
1. Insert the end/tip of pole in the cover’s slot.
2. lower the end/tip of pole until it reaches
the narrow lower bottom end of the cover’s slot.
3. Pull until the cover opens and wait until LEDs turn green.
Ground Level
At Height
Regulatory Standards
The NEO50 & NEO60 hooks certify with the following regulatory standards:
| NEO50: | ||
| ETSI EN 300 220-1 V3.1.1 | ETSI EN 303 446-2 V1.1.0 | UNE-EN 60730-1:2013 |
| ETSI EN 300 220-2 V3.1.1 | UNE-EN 1050 | EN 10204 3.1.B |
| ETSI EN 303 446-1 V1.1.0 | UNE-EN 13135:2013 | |
| NEO50 & NEO60: | ||
| UNE-EN 60204-1:2007 | UNE-EN 61000-6-4:2007 | UNE-EN 61000-6-2:2006 |
| UNE-EN ISO12100:2012 | ||
| NEO60: | ||
| UNE-EN 13155:2004+A2 |
Directive on Machine Safety (D2006/42/EC).
EMC Directive (2014/30/EU).
Low Voltage Directive (2014/35/EU).
Radio Equipment Directive (2014/53/EU).
Assurance of Production Quality in accordance with ISO9001.
ARIB Construction Design Certification Number 203-JN0689.
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System.
Each mechanism is delivered with the CE stamp and a declaration of CE conformity.
elebia is a member of F.E.M. (European Federation of Materials Handling).
Quick Links
Schedule a Demo
Need or want to see in person
how your company can benefit
by using the NEO lifting hooks?
Quick FAQ’s about NEO50
What is the LED status indicator for?
The high-brightness LED status indicator is an additional safety measure which shows the lifting hook’s status at all times with a bright 4 colour colour-code scheme visible from the operator’s position.
How many models are there of the NEO range of lifting hooks?
There are 5 models of the NEO range of lifting hooks with four different lifting capacities: 2oTn, 50Tn, 60Tn and 100Tn.
Which is a suitable lifting point for the NEO50/NEO60 lifting hook?
The NEO50 & NEO60 lifting hooks have been designed as a solution for lifting and transporting any load, as well as for oversized lifting points of up to 130mm in diameter.
