NEO100 Hook
The NEO100 lifting hook is our newest solution for lifting and transporting any load, as well as for oversized lifting points of up to 180mm Ø. Capable of lifting up to 100.000 kgs. (220.462 lbs.), with a 4:1 safety factor and advanced safety and productivity features, this is our biggest hook yet!
NEO100 Hook – Our Biggest Hook Yet!
100,000 kgs./220,462 lbs. lifting capacity
Ideal for oversized lifting points of up to 180mm Ø
Safety factor of 4:1
Fail-safe Design: Impossible to drop a suspended load
With load cell, LED Status Indicator, Laser Pointer and other safety and productivity features.
Check out all of our NEO Heavy Duty Lifting Hooks
How does it Work?
As with the NEO50, the NEO100 hook approaches the lifting point and once
the trigger makes contact with the lifting point, the closing operation begins.
The sensor recognizes the hook is in the closed position, it latches automatically,
with the LED’s status changing from green (open), to red, (intermediate state), and finally to blue (closed).
Once the LED status indicator is blue, the load is ready to be lifted and transported.
Check out all of our other NEO Heavy Duty Lifting Hooks
In Detail
The Maximum Releasable Weight is 100 kgs./220 lbs..*
* For higher values, please contact the sales department.
Light-Emitting Diode Status Indicator
Like the rest of the NEO range, the NEO100 carries a High-Brightness LED status indicator,
an additional safety measure which shows the lifting hook’s status at all times
with a bright 4 colour-code scheme visible from the operator’s position
Green: Lifting Hook is Open / Release Load
Red: Intermediate: Do Not Lift!
Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
White: Low Battery
Smart Battery
The high-capacity battery status is indicated by a 14 segment Eink display.
When the NEO100 is in Smart Nap Mode, its electronics and LED status indicator
will not activate themselves until the hook has made contact with the load’s
lifting point, improving the batteries’ efficiency and energy consumption.
By means of the eMAX remote control, the electronics of the hook
can be configured so that when the battery charge is below
a preset threshold by the user, the hook can only be opened.
With this threshold, even is the battery is almost discharged,
you will always be able to open the hook and release the load.
Always On/Smart Nap
Always On
With the “Always On” mode, the colour code scheme
of the LED status indicator will always be visible.
Simply press the top button beside the battery to activate this mode
Battery Duration:
5,000 cycles / 250 hours in standby mode
Smart Nap
The “Smart Nap” mode reduces battery consumption by activating the LED’s colour-code scheme when the NEO100’s hook commences its closing motion. The LEDs and battery are not activated.
Battery Duration:
5,000 cycles / up to 2 months in standby mode
Load Cell *
The NEO100 carries a precise load cell
With the load cell, as of 1% of the working load limit (1,000 kgs./2,204 lbs.),
the intermittence of the LED Status Indicator is of a higher frequency, making it
visually recognizable that the hook is closed and with a suspended load.
* This feature is optional
Specifications
| Load Cell Type | Flexion Ring |
| Material | Stainless Steel |
| Protection | IP66 |
| Nominal Capacity (Ln) | 50,000 |
| Precision Class | 0.5% |
| Minimum Dead Load | 0% Ln |
| Service Load | 150% Ln |
| Ultimate Load | 400% Ln |
| Total Error | < ±0.5% Sn |
| Repeatability Error | < ±0.02% Sn |
| Creep Error (30 min.) | < ±0.01% Sn |
| Temperature Compensation | -20 ºC to 60 ºC |
| Temperature Limits | -20 ºC to 90 ºC |
| Nominal Sensivity (Sn) | 1 ±0.25% mV/V |
| Input Impedance | 400 ±30 |
| Output Impedance | 352 ±5 |
| No Load Input | < ±2% Sn |
| Insulation Resistance | > 5,000 M |
| Temperature Effect: | |
| on zero | < ±0.02% Sn / 5 ºC |
| on sensitivity | < ±0.02% Sn / 5 ºC |
Laser Pointer
The laser pointer is optional for the NEO100.
It acts as a guide to perfectly place and set the NEO100
in the correct position when approaching the lifting point.
Simply activate it by pressing the button that is beside the battery slot.
Fail-safe Design
As with the rest of our lifting products, the NEO100 is fail-safe designed.
Once the cargo is correcly placed on the hook,
it is not possible to release or drop the load that is being lifted.
Remote Controlled
Remotely engage and release any load with any of our remote controls.
The eMINI, eMAX and eINST allow a simple and reliable control in a fail-safe way.
Send all the necessary orders and receive all the info from
the NEO100 hook straight to your preferred remote control.
Manual Override
If there’s ever the need to manually override NEO100’s
electronics, the process is very simple.
If at ground level, simply open the cover and wait until LEDs turn green.
If the manual override process has to be carried out at height
a simple 3 step procedure is all it takes:
1. Insert the end/tip of pole in the cover’s slot.
2. lower the end/tip of pole until it reaches
the narrow lower bottom end of the cover’s slot.
3. Pull until the cover opens and wait until LEDs turn green.
Ground Level
At Height

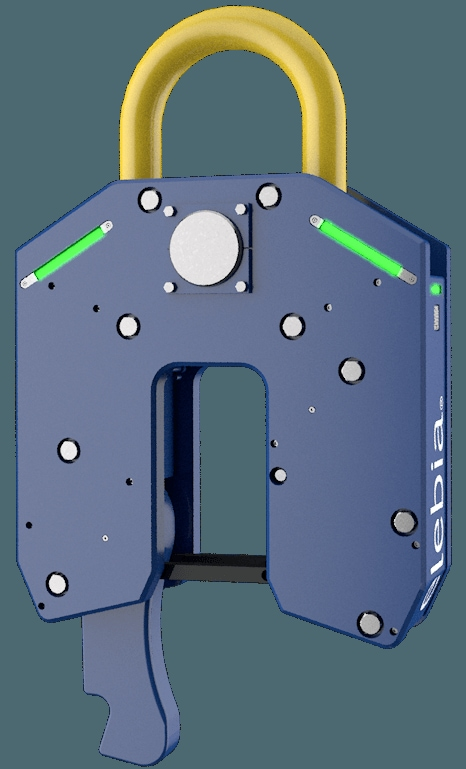

Regulatory Standards
The NEO100 Hook certfies with the following regulatory standards:
| ETSI EN 303 446-1 V1.1.0 | EN 10204 3.1.B | UNE-EN 60730-1:2013 |
| ETSI EN 303 446-2 V1.1.0 | UNE-EN ISO12100:2012 | UNE-EN 61000-6-4:2007 |
| ETSI EN 300 220-1 V3.1.1 | UNE-EN 1050 | UNE-EN 61000-6-2:2006 |
| ETSI EN 300 220-2 V3.1.1 | UNE-EN 13135:2013 | UNE-EN 60204-1:2007 |
Directive on Machine Safety (D2006/42/EC).
EMC Directive (2014/30/EU).
Low Voltage Directive (2014/35/EU).
Radio Equipment Directive (2014/53/EU).
Assurance of Production Quality in accordance with ISO9001.
ARIB Construction Design Certification Number 203-JN0689.
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System.
Each mechanism is delivered with the CE stamp and a declaration of CE conformity.
elebia is a member of F.E.M. (European Federation of Materials Handling).
Quick Links
Schedule a Demo
Need or want to see in person
how your company can benefit
by using the NEO100 lifting hooks?
Quick FAQ’s about the Hook NEO 100
What is the load cell used for in a lifting hook?
The load cell is highly recommended for preventing overloads and as an additional safety hooks lifting measure.
What is a below-the-hook lifting device?
A below-the-hook lifting device is a tool or mechanical device that attaches to a crane or other lifting apparatus, and grabs and secures a load so that it can be moved safely from one location to another.
What is the lifting capacity of the NEO100 lifting hook?
The NEO100 lifting hook is capable of lifting up to 100.000 kgs. (220.462 lbs.), with a 4:1 safety factor and advanced safety and productivity features.
