NEO – Lifting Hook for Bell Furnaces



· THE perfect solution for lifting & handling bell furnaces

· Ideal for oversized lifting points (up to 100mm Ø)

· Remote engage and release of load

· Fail-safe Design: Impossible to drop a suspended load

· “All or Nothing” principle: Additional safety feature where
NEO lifts load ONLY when closure system is confirmed locked



Check it out!





Bell Furnaces Lifting Hook

The lifting hook for bell furnaces has been designed as a
solution for lifting and transporting bell furnaces,
as well as for oversized lifting points (up to 100mm Ø) such as
rods between plates, holes on a plate, chain slings, lifting bails
and other oversized lifting points.

Lifting Hook for Bell Furnaces - NEO, The Lifting Hook for Bell Furnaces


In Detail

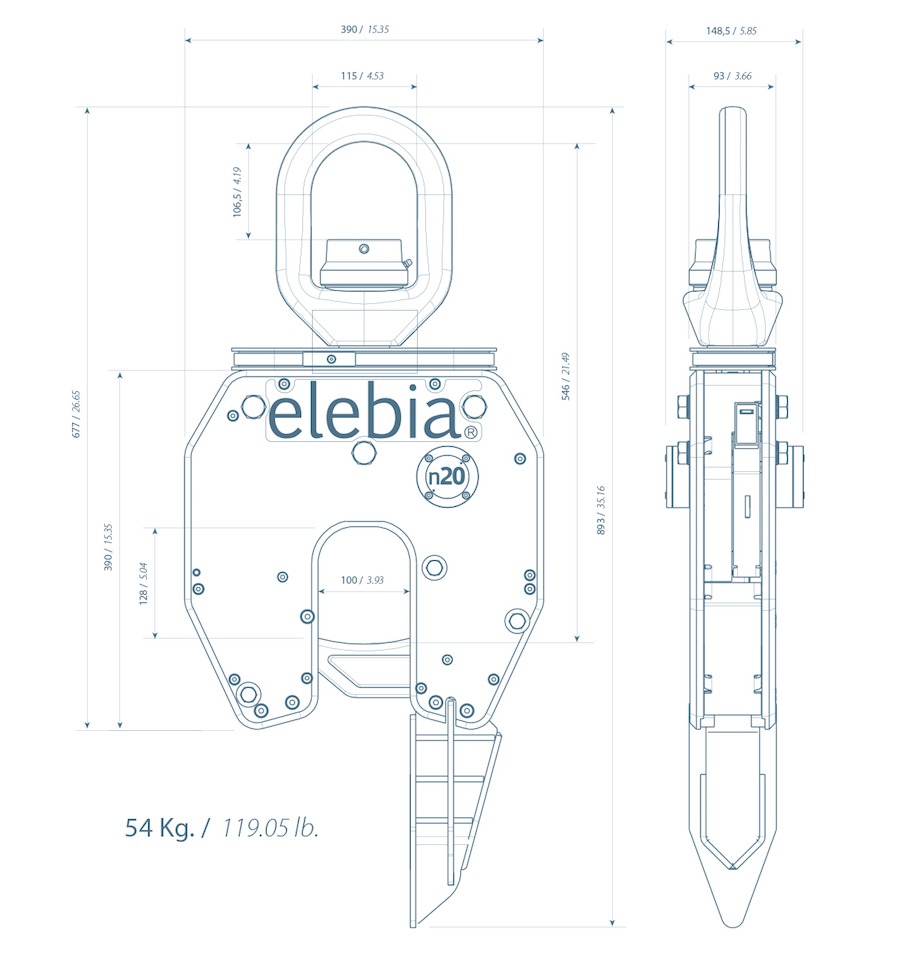

cotes neo20 - NEO, The Lifting Hook for Bell Furnaces


Swivel with Bearings

The bearings allow the Lifting Hook for Bell Furnaces to rotate freely.
If required, the swivel can be set in a fixed position.



Lifting Hook with Swivel Lock - NEO, The Lifting Hook for Bell Furnaces

High-Brightness LED
Status Indicator *

In regular lifting operations with bell furnaces, the operator has a limited
line of sight and poor visibility as to the lifting hooks’ position and engagement of the bell furnace.
The High-Brightness LED status indicator is an additional safety measure which shows the lifting hook’s
status at all times with a bright 4 colour colour-code scheme visible from the operator’s position.

Green: Lifting Hook is Open / Release Load
Red: Intermediate: Do Not Lift!
Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
White: Low Battery

* This feature is optional



Lifting Hooks with LEDs - NEO, The Lifting Hook for Bell Furnaces




High-Capacity Battery

With the high capacity battery, a simple 3 hour charge allows for
more than 3.000 cycles or over 250 hours in standby mode.
The 14 segment E-ink charge status display and rechargeable Li-Ion
technology guarantee an optimal autonomy and consumption of the battery.

5. Battery for Lifting Hook for Bell Furnaces - NEO, The Lifting Hook for Bell Furnaces


Load Cell *

NEO is equipped with a load cell to weigh the load that is being lifted.
This load cell is precise, reliable, rugged, compact and fully integrated into the
lifting hook, representing no increase in weight or dimensions of the unit.
The load cell in combination with the eMAX remote control transforms
NEO into a precise weighing scale with advanced features.

* This feature is optional



6. Lifting Hook with Load Cell - NEO, The Lifting Hook for Bell Furnaces


Autoclose Mode *

A contact sensor detects when load is in position,
and NEO closes automatically.

* This feature is optional



Lifting Hook with Autoclose - NEO, The Lifting Hook for Bell Furnaces




Fail-safe Design

Impossible to release or drop the load while it is suspended on the lifting hook.
Just like the automatic lifting hooks and the automatic lifting clamps,
the automatic lifting hook for bell furnaces is designed under a
fail-safe principle that makes it impossible to drop a suspended load.



8 Lifting Hook Failsafe Designed - NEO, The Lifting Hook for Bell Furnaces




Remote Controlled

Open and close the lifting hook or receive real-time information of weight,
battery level, and other values of the lifting and manoeuvring operation.
Just like the rest of our crane hooks and lifting clamps,
the bell furnace lifting hook can be paired to a remote control.



Remote Controlled Lifting Clamp - NEO, The Lifting Hook for Bell Furnaces



Metal Tip *

A metal tip can be inserted to facilitate NEO’s positioning into a narrow space.
Fabricated from high-strength steel, it is reinforced to protect the the hook against impacts.

* This feature is optional



Lifting Hook with Tip - NEO, The Lifting Hook for Bell Furnaces



Other Lifting Points

NEO is not only the perfect lifting solution for Bell Furnaces, it is also
ideal for lifting and transferring oversized lifting points (up to 100mm Ø) such as
rods between plates, holes on a plate, chain slings, lifting bails
and other oversized lifting points.



Lifting Hook for Hole on a Plate - NEO, The Lifting Hook for Bell Furnaces

Hole on a Plate

10b Lifting Hook for Rods between Plates - NEO, The Lifting Hook for Bell Furnaces

Rods between Plates

Lifting Hook for Chain Slings - NEO, The Lifting Hook for Bell Furnaces

Chain Slings

Lifting Hook for Lifting Bails - NEO, The Lifting Hook for Bell Furnaces

Lifting Bails
